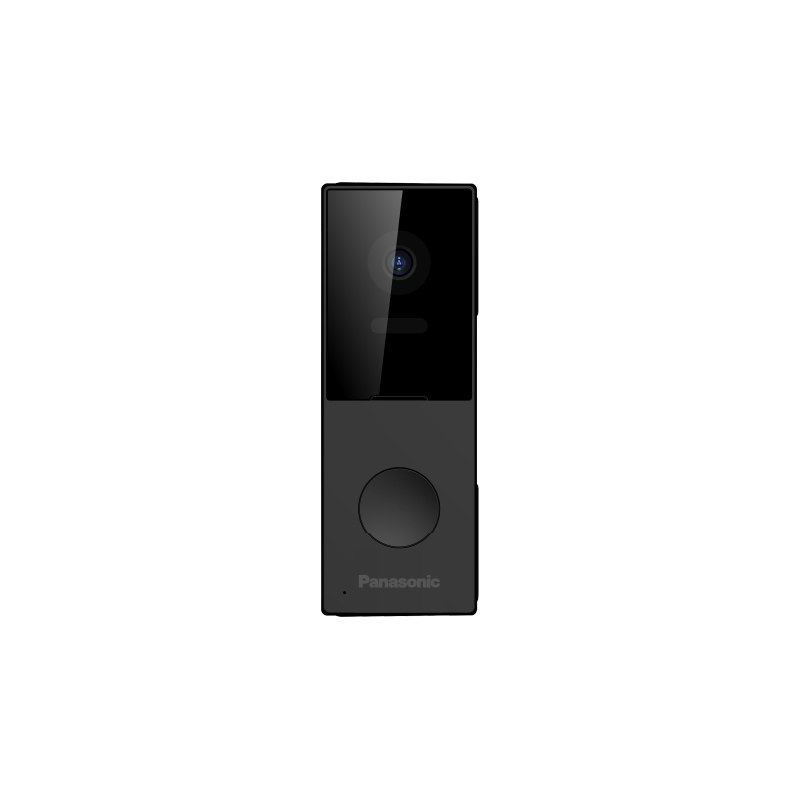

Single button Video Door Station
Original price was: ₹15,000.00.₹12,000.00Current price is: ₹12,000.00.
Door Station
- Single button Video Door Station
- 2MP FHD Camera with 120 degree angle
- Noise Suppression and Echo cancellation feature
- Door Lock Release Port
- Night Vision with white LED Lights
- Aluminum Housing with IP65 & IK07 rating
Out of stock
Video Parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Video Codec | – |
| Video Resolution | Main |
| Image Sensor | CMOS 2MP (1920 x 1080) |
| View Angle | H120, V62, D145 |
| Lighting Method | White coloured LED light |
| Minimum Illuminance | 0.01lx (within approx. 50cm from the camera) |
Audio Parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Audio Codec | G.711 |
| Audio Output | Built-in loudspeaker |
| Audio Input | Built-in omnidirectional microphone |
| Audio Quality | Noise suppression and echo cancellation |
| DTMF unlock | – |
Interface
| COMPONENT | SPECIFICATION |
|---|---|
| Network Interface | – |
| Power Output | – |
| 12V DC input | – |
| Relay Lock | 1 |
| Wiegand | – |
| Door Station Port | – |
| 4-wire input | 1 |
| Alarm In | – |
| Alarm Out (Power Output) | – |
| Micro SD Card | – |
| Speaker volume knob | 1 |
| CAM standard switch | 1 (Support AHD and CVBS switching) |
| Exit button | – |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Power Source | Powered by monitor |
| Operating Voltage | – |
| Current Rating | DC 14.5V, 0.29 A |
| Power Consumption | Standby: 0 W, Maximum: 4.3 W |
| Installation | Surface mounted, corner bracket available |
| Colour | Black |
| Dimensions (ｍｍ) (H x W x D) | 133 x 48 x 21 |
| Working Temperature | -10 ℃ to +55 ℃(14 ℉ to 131 ℉) |
| Storage Temperature | -20 ℃ to +60 ℃(-4 ℉ to 140 ℉) |
| Relative Humidity | 10% to 90% RH |
| Ingress Protection | IP65 |
| Inverse Kinematics | IK07 |
| Display Language | – |
| Tamper alarm | – |
| Motion Detect | Support |
| Face liveliness check | – |
| External Material | Metal |
| Weight | 190 g |
