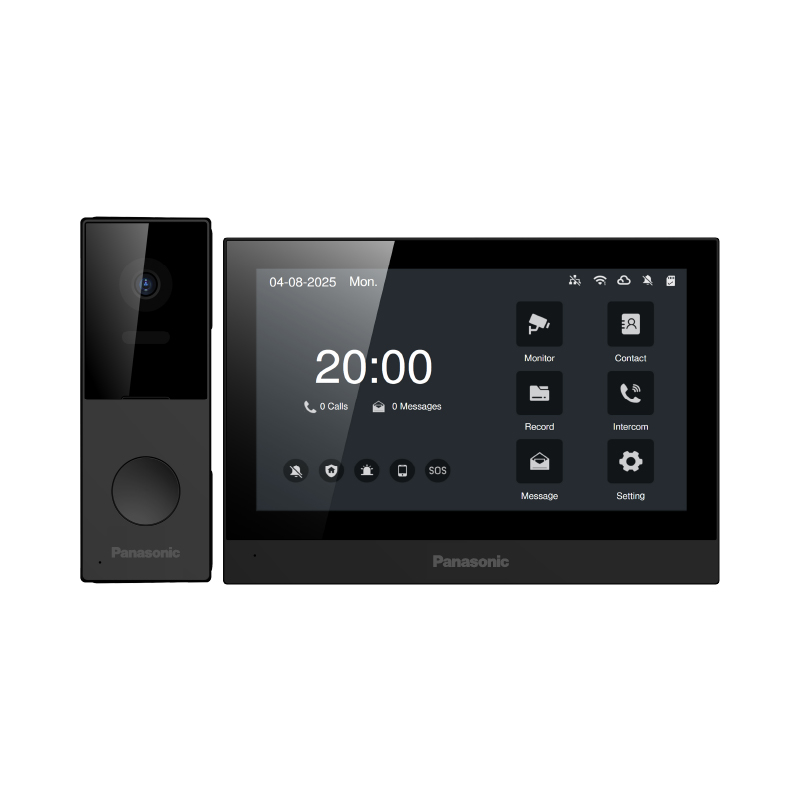

IP SIP Kit ( Room Monitor+ Door Station )

Room Monitor

• 7-inch TN LCD with capacitive Touch Screen
• IP CCTV Camera Integration
• 3rd Party SIP device compatibility (SIP/Alarm/RTSP)
•  Built-in Wifi control by Smartphone – IOS & Android
• Auto & Manual Video/Picture recording
• SD Card slot upto 32GB
• Supports 8 alarm Zones
• POE 802.3af

Door Station

• Single button Video Door Station
• 2MP FHD Camera with 120 degree angle
• Noise Suppression and Echo cancellation feature
• Door Lock Release Port
• Night Vision with white LED Lights
• Aluminum Housing with IP65 & IK07 rating


  Category	Specification	Room	Door
  System parameters	Operation System	Embedded Linux OS	–
  Display parameters	Display Type	7-inch Colour TN LCD	–
  	Operation Method	Operation Method	–
  	Resolution	1024 x 600 pixels	–
  Video parameters	Video Codec	H.264	–
  	Video Resolution	Main stream: FHD 1920 x 1080 (Optional: HD 720P , VGA)	Main stream: FHD 1920 x 1080 (Optional: VGA)
  	Image Sensor	–	CMOS 2MP (1920 x 1080)
  	View Angle	–	H120, V62, D145
  	Lighting Method	–	White coloured LED light
  	Minimum Illuminance	–	0.01lx (within approx. 50cm from the camera)
  Audio parameters	Audio Codec	G.711	G.711
  	Audio Output	Built-in loudspeaker	Built-in loudspeaker
  	Audio Input	Built-in omnidirectional microphone	Built-in omnidirectional microphone
  	Audio Quality	Noise suppression and echo cancellation	Noise suppression and echo cancellation
  	DTMF unlock	–	–
  Network Parameters	Wireless network	–	–
  	Wiring	UTP (Cat 5e or higher)	–
  	Network Protocol	TCP/IP, SIP2.0, RTSP	–
  Interface	Network Interface	1(RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)	–
  	Power Output	–	–
  	12V DC input	1	–
  	Relay Lock	–	1
  	Wiegand	–	–
  	Door Station Port	2 (4-wire)	–
  	4-wire input	–	1
  	Alarm In	–	–
  	Alarm Out (Power Output)	–	–
  	Micro SD Card	2 (4-wire)	–
  	Speaker volume knob	–	1
  	CAM standard switch	–	1 (Support AHD and CVBS switching)
  	Exit button	–	–
  Unlock way	Unlock way	–	–
  	Face Recognition Capacity	–	–
  	RFID (Capacity)	–	–
  	RFID to unlock	–	–
  Capacity	Linked IP Camera	Yes (Up to 32)	–
  	Text Messages	Y (up to 100)	–
  	Voice Messages	Y	–
  	Intercom Logs	Y (up to 100 )	–
  	Alarm Logs	Y (up to 100 )	–
  	Recording	Y (100 pcs for picture recording without SD card) Video can be recorded after inserting the SD card.	–
  General	Power Source	PoE (IEEE 802.3af compliant, Class 0 device) / DC adaptor	–
  	Operating Voltage	48V POE / 12V DC	Powered by monitor
  	Current Rating	POE 48V, 0.32A / DC 12V, 1.15A	DC 14.5V, 0.29 A
  	Power Consumption	Standby: 6.0 W, Maximum: 15.4 W	Standby: 0 W, Maximum: 4.3 W
  	Installation	Surface mounted	Surface mounted, corner bracket available
  	Colour	Black	Black
  	Dimensions (mm)(H x W x D)	125 x 180 x 19 (Excluding protruding sections)	133 x 48 x 21
  	Working Temperature	-10 ℃  to +55 ℃  (14 ℉ to 131 ℉)	-10 ℃  to +55 ℃  (14 ℉ to 131 ℉)
  	Storage Temperature	-20 ℃  to +60 ℃  (-4 ℉ to 140 ℉)	-20 ℃  to +60 ℃  (-4 ℉ to 140 ℉)
  	Relative Humidity	10% to 90% RH	10% to 90% RH
  	Ingress Protection	–	IP65
  	Inverse Kinematics	–	IK07
  	Display Language	English
  	Tamper alarm	–	–
  	Motion Detect	–	–
  	Face liveliness check	–	–
  	External Material	PC +ABS	Metal
  	Weight	380 g	190 g
