Single button Video Door StationOriginal price was: ₹15,000.00.₹12,000.00Current price is: ₹12,000.00.
-
Basic Analog Video Door Phone KitOriginal price was: ₹15,000.00.₹12,000.00Current price is: ₹12,000.00.
7-inch LCD with capacitive Touch Screen
Original price was: ₹15,000.00.₹12,000.00Current price is: ₹12,000.00.

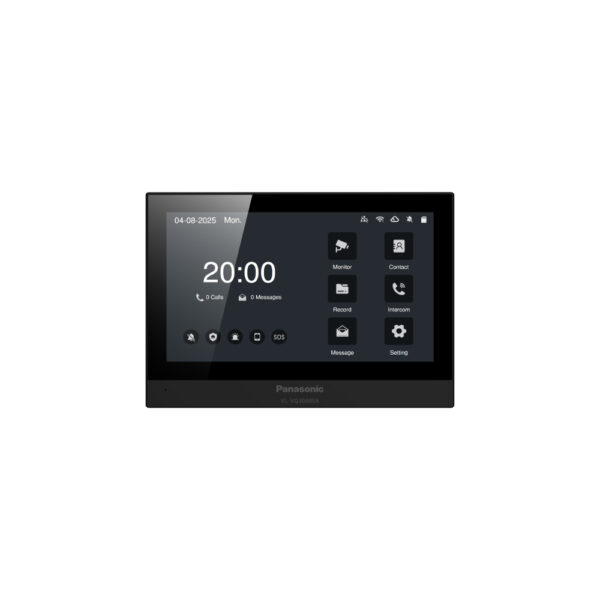

Room Monitor
- 7-inch TN LCD with capacitive Touch Screen
- IP CCTV Camera Integration
- 3rd Party SIP device compatibility (SIP/Alarm/ONVIF/RTSP)
- Apt to Apt Intercom
- Built-in Wifi control by Smartphone – IOS & Android
- Auto & Manual Video/Picture recording
- SD Card slot upto 32GB
- Supports 8 alarm Zones
- POE 802.3af
Out of stock
System Parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Operation System | Embedded Linux OS |
Display parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Display Type | 7-inch Colour TN LCD |
| Operation Method | Capacitive touch screen |
| Resolution | 1024 x 600 pixels |
Video Parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Video Codec | H.264 |
| Video Resolution | Main stream: FHD 1920 x 1080 (Optional: HD 720P , VGA) |
| Image Sensor | – |
| View Angle | – |
| Lighting Method | – |
| Minimum Illuminance | – |
Audio Parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Audio Codec | G.711 |
| Audio Output | Built-in loudspeaker |
| Audio Input | Built-in omnidirectional microphone |
| Audio Quality | Noise suppression and echo cancellation |
| DTMF unlock | – |
Network Parameters
| COMPONENT | SPECIFICATION |
|---|---|
| Wireless network | IEEE 802.11 b/g/n, 2.4 GHz Transmission power: b/g/n—54.1/29.6/18.5mW (max) |
| Wiring | UTP (Cat 5e or higher) |
| Network Protocol | TCP/IP, SIP2.0, RTSP |
Interface
| COMPONENT | SPECIFICATION |
|---|---|
| Network Interface | 1(RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)) |
| Power Output | 1 (12 V / 150 mA output) for alarm zone devices |
| 12V DC input | 1 |
| Relay Lock | – |
| Wiegand | – |
| Door Station Port | 2 (4-wire) |
| 4-wire input | – |
| Alarm In | 8 |
| Alarm Out (Power Output) | 1 |
| Micro SD Card | 1 ( 8-32 GB ) |
| Speaker volume knob | – |
| CAM standard switch | – |
| Exit button | – |
Capacity
| COMPONENT | SPECIFICATION |
|---|---|
| Linked IP Camera | Yes (Up to 32) |
| Text Messages | Y (up to 100) |
| Voice Messages | N |
| Intercom Logs | Y (up to 100 ) |
| Alarm Logs | Y (up to 100 ) |
| Recording | Y (100 pcs for picture recording without SD card) Video can be recorded after inserting the SD card. |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Power Source | PoE (IEEE 802.3af compliant, Class 0 device) / DC adaptor |
| Operating Voltage | 48V POE / 12V DC |
| Current Rating | POE 48V, 0.32A / DC 12V, 1.15A |
| Power Consumption | Standby: 6.0 W, Maximum: 15.4 W |
| Installation | Surface mounted |
| Colour | Black |
| Dimensions (mm)(H x W x D) | 125 x 180 x 19 (Excluding protruding sections) |
| Working Temperature | -10 ℃ to +55 ℃(14 ℉ to 131 ℉) |
| Storage Temperature | -20 ℃ to +60 ℃(-4 ℉ to 140 ℉) |
| Relative Humidity | 10% to 90% RH |
| Ingress Protection | – |
| Inverse Kinematics | – |
| Display Language | English |
| Tamper alarm | – |
| Motion Detect | – |
| Face liveliness check | – |
| External Material | PC +ABS |
| Weight | 380 g |
