CP-UVK-711M

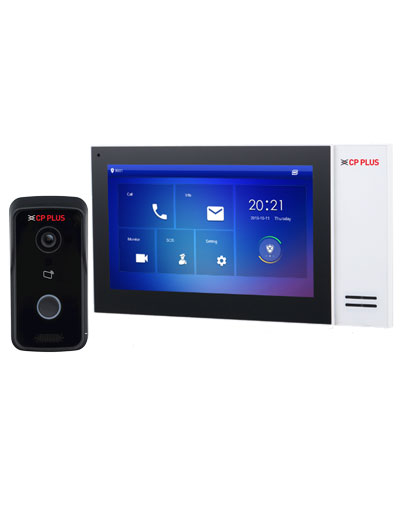

IP Villa Door Station & Indoor Monitor
IP Villa Door Station
High definition camera; WDR
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call, support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
Control two locks
IPC surveillance
Alarm integration
High performance
Embedded 8GB SD card
Support standard PoE
Quick configuration without computers
| Communication Mode | Full digital |
| Display | 7-inch TFT screen (17.78cm) |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| IR | Auto IR |
| Power Source | 12V DC 1A Standard PoE – IP Villa Door Station ; PoE or DC 12V – Indoor Monitor |
| Power Consumption | IP Villa Door Station: Standby≤1W, working≤5W ; Indoor Monitor : Standby≤4W, work≤6W |
| Operating Temperature | -30°C to +60°C (-20°F to +60°F ) – IP Villa Door Station ; -10°C to +55°C (+14°F to +131°F) – Indoor Monitor |
| Humidity | 10%RH–95%RH |
| Dimension | 135mm×70.4mm×34.4mm (IP Villa Door) ; 119.6 mm × 221.5 mm × 21.5 mm (Indoor Monitor) |
| IP Rating | IP65 (silicone sealant is needed, see the quick start guide) |
| Casing | PC + ABS |
| Weight | 326 g (IP Villa Door) ; 0.35Kg (Indoor Monitor) |
