CP-UNC-TA41L3C-D-Q2

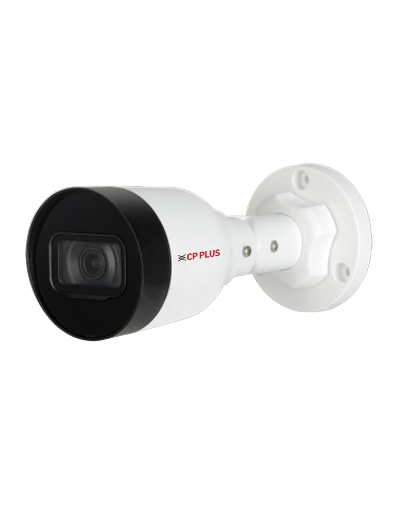

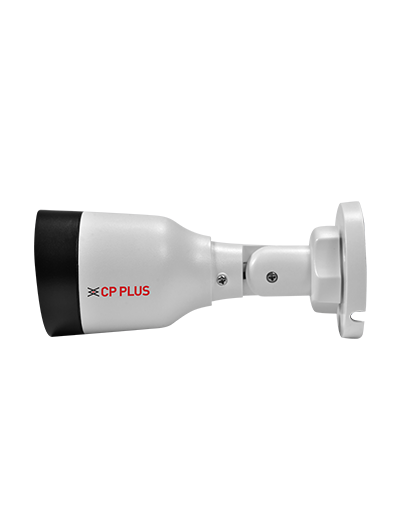

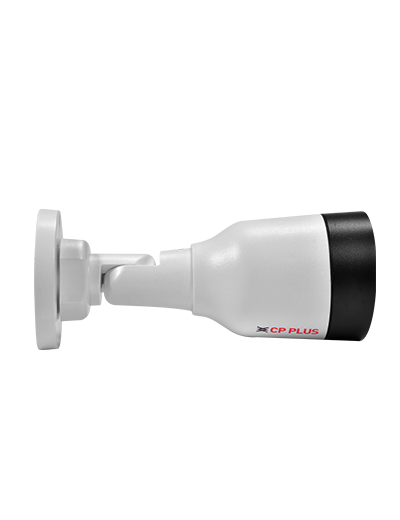

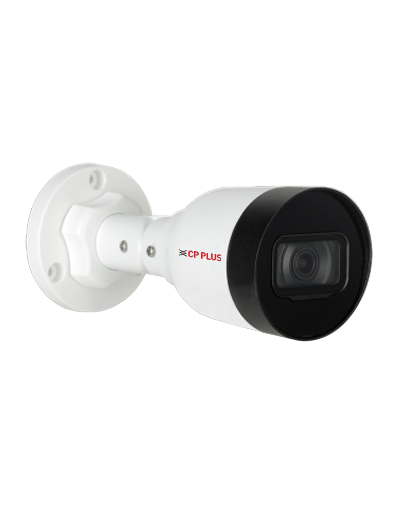

4MP IR Network Bullet Camera – 30Mtr.
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
Max. 4MP (2688 x 1520), (2560 x 1440)@1-25fps
H.265, H.264H, H.264, H.264B, MJPEG
Support Triple stream
WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC
3.6mm Lens
IR Range of 30 Mtr., PoE, IP67
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro Lite, EVMS Pro
| Image Sensor | 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) |
| Minimum Illumination | 0.03 lux@F2.0 (Color, 30 IRE),0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| RAM | 128 MB |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Image Setting | Brightness, Contrast, Sharpness, Saturation, Gamma |
| Lens Type | Metal |
| IR Control | Auto, Manual |
| Max. Aperture | F2 .0 |
| Lens Mount | M12 |
| Smart IR | Support |
| IR Number | 1 (IR LED) |
| IR | IR Range of 30 Mtr. |
| Day/Night | Auto(ICR)/Color/B/W |
| Close Focus Distance | 1.3 m |
| DORI Distance | 76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify) |
| Gain Control (AGC) | Auto/Manual |
| Lens | 3.6mm Lens |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| S/N Ratio | >55dB |
| Angle of View | H: 78°, V: 43°, D: 92° |
| stream Capability | Triple Stream |
| Frame Rate | Main Stream: 4MP (2688 x 1520)@1-25fps, (2560 x 1440)@1-25fps, 3MP (2304 x 1296)@1- 25fps, 1080P (1920 x 1080)@1-25fps, 1.3MP (1280 x 960)@1-25fps, 720P (1280 x 720)@1 – 25fps Sub stream 1: 720P (1280 x 720)@1-25fps, D1 (704 x 576)@1-25fps, VGA (640 x 480)@1- 25fps, CIF (352 x 288)@1-25fps Sub stream 2: D1 (704 x 576)@1-25fps, VGA (640 x 480)@1-25fps, CIF (352 x 288)@1-25fps |
| Resolution | 4MP (2688 x 1520), (2560 x 1440), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960)@1-25fps, 720P (1280 x 720), D1 (704 x 576), VGA (640 x 480), CIF (352 x 288) |
| Noise Reduction | 3D NR |
| Privacy Mask | 8 areas |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, |
| OSD | Channel Title, Time Title, Text Overlay, Font Attribute, Custom Overlay |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 3 kbps–6144 kbps, H.264: 8 kbps–6144 kbps |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, ARP, UDP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, SFTP, DHCP, DNS, QoS, NTP, Multicast, ICMP, IGMP, SSL, PPPoE, SNMP V3, InstaOn, Auto Connect, ONVIF (Profile S, Profile T) |
| Video Standard | PAL |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption |
| Device Search Tool | IP finder |
| OTA (Over-The-Air) | Support |
| Image Flip | Support |
| Iris Control | Fixed |
| Image Rotation | 0°/90°/180°/270° |
| Browser | Browser |
| User/Host | 6 (Total bandwidth: 24 M) |
| Ethernet | RJ-45 (10/100 Base-T) |
| Storage | FTP |
| Weatherproof Standard | IP67 |
| Working Voltage | 12 VDC (±30%); Ethernet Port (PoE) (802.3af) |
| Power Source | 12 VDC/Ethernet Port (PoE) (802.3af) |
| Power Consumption | Basic: 2.5 W (12 VDC), 3.3 W (PoE), Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC), 5.1 W (PoE) |
| Operating Temperature | -40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Dimension | 162.6 mm × 70 mm × 70 mm |
| Weight | 220 g |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC, RoHS and BIS, STQC approved compliance report |
